I MAX

The I Max is an LED light box with style and impact. It features a contemporary black border and an impressive 5000 LUX light intensity. To maximise space, the frames are just 10mm deep and are double-sided to enable graphics to be placed on both sides.


Format Film Size Price
A4 8.3 x 11.7 in $149 ea.
A3 11.7 x 16.5 in $202 ea.
A2 16.5 x 23.4 in $334 ea.
A1 23.4 x 33.1 in $505 ea.
A0 33.1 x 46.8 in $897 ea.



I MAX
I MAX


Key Features

I MAX Features (1)

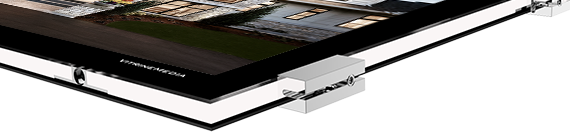

INNOVATIVE FIXTURES

Unique hanging system for easy installation

I MAX Features (2)

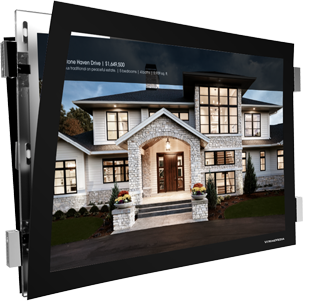

DOUBLE-SIDED ILLUMINATION

Maximise your advertising space by displaying graphics on both sides

I MAX Features (3)

HIGH LUMINOSITY

With 5000 LUX it is one of the most luminous lightboxes on the market

I MAX Features (4)

DISPLAY VERSATILITY

Use our VM Cable system to create adaptable display solutions

"THE LED DISPLAY PERFECT FOR YOUR STOREFRONT"
I Max
INNOVATIVE FASTENERS

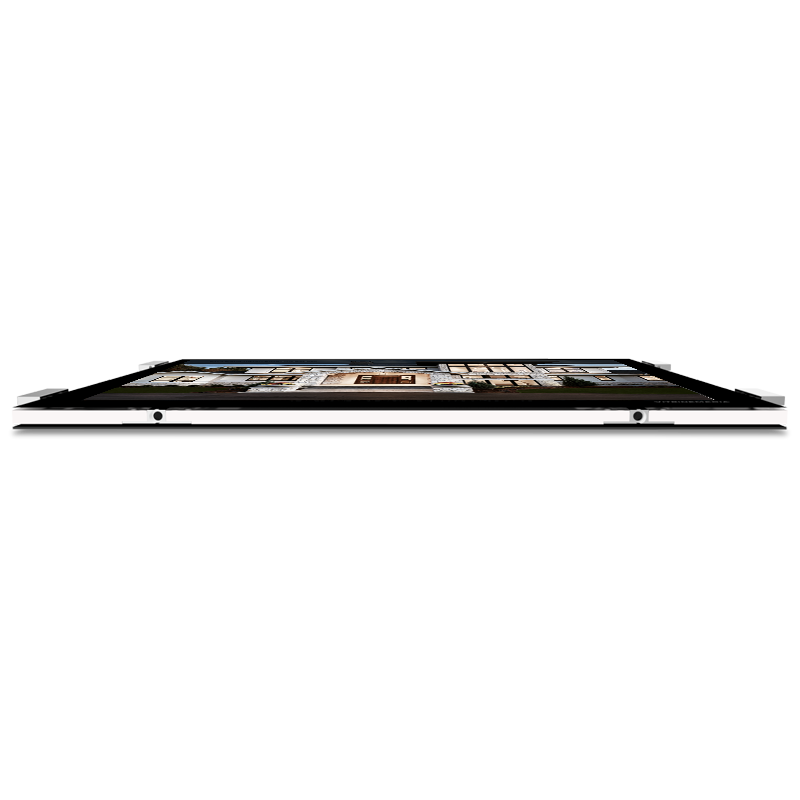

ULTRA THIN
HYBRID ORIENTATION
Hybrid Orientation I Max

Detail

I Max is available in either a portrait or landscape orientation in A-series dimensions from A4 to A0 without compromising the 10mm depth of the slim illuminated display frame. To create stylish window arrangements, the frame is compatible with our cable installation systems and can be inclined to create a viewing angle of 0 to 90 degrees. With external fixtures, the I Max frame benefits from a modern design which enhances graphics on display.

In addition to the A-Series lightboxes, three banner options have been created to enable compositions of multiple frames with headers. Each banner is 35mm in height and available in widths of 60mm, 100mm and 125mm. Finally, take a look at our wall mounted I Max frames which complete the I Max range and provide versatility in creating uniform installations using this framing design.

Technical Specification

A4 format frame dimensions 13 x 10"
A3 format Frame dimensions 18 x 13"
A2 Frame dimensions 25 x 18"
A1 Frame dimensions 35 x 25"
Depth Just under 3/8"
Combine panel formats Fixtures do not allow combinations of different panel formats
Voltage 24 Volts
LED light intensity 5000 Lux
Number of LEDs 135 (A3 format frame)
Fixture Connection External
Double-sided lit panel Yes
Watt A4 format 5W
Watt A3 format 7.5W
Watt A2 format 10.5W
Watt A1 format 26.5W
IMAX is covered by US Patent No. 20150192262

Standard Compliance

  •  Centre Certification Bureau Veritas
  • ROHS
  • PB Free
  • CE
  • FCC
  • Brevet Déposé

Product Video

Gallery

Downloads

Related Accessories
